DOLCE ENGINEERING IS ONE AMONG THE WELL ESTABLISHED AND REPUTED FOOD PROCESSING MACHINERY MANUFACTURER IN INDIA.

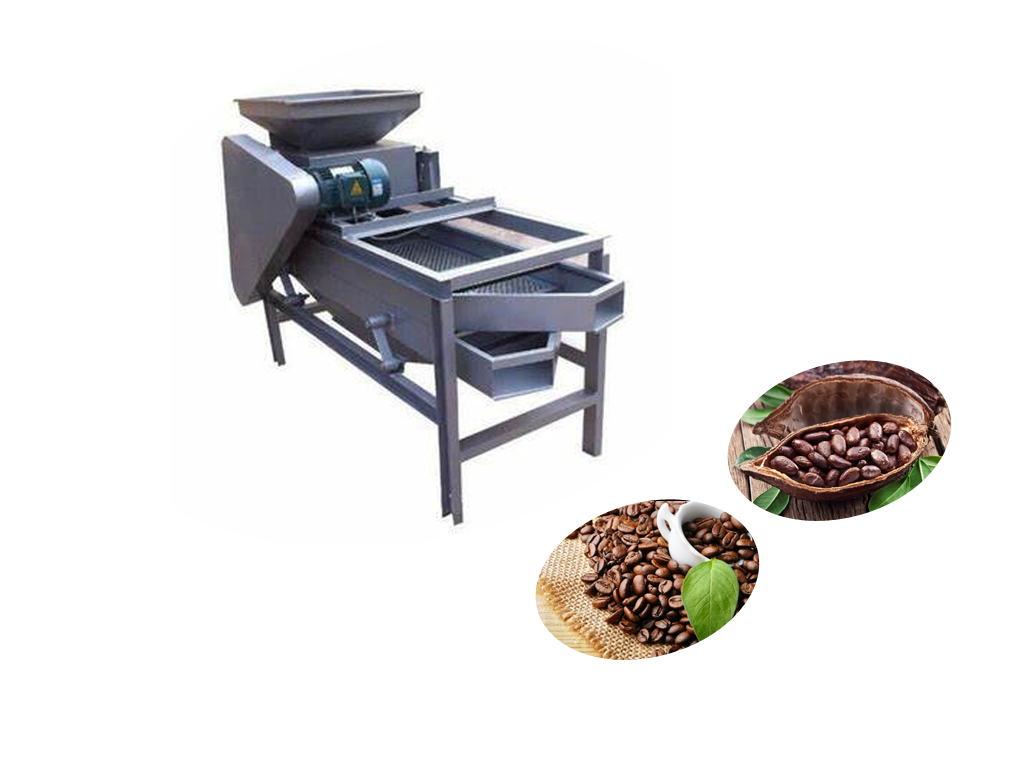

DE-COCOA BEAN SORTER:

    Cocoa bean sorter machine is used to sort the cocoa bean according to the size of cocoa bean, it can separate the big cocoa bean and small cocoa bean, so that you can go on next step, and it is very helpful for you to remove the shell, and get the high shelling rate.

DE-COCOA BEAN ROASTER:

    The process of cocoa roaster: the cocoa bean should be roasted at high temperature 100-120 degree, the whole process takes about 30 minutes to ensure that every cocoa beans after roasting, exudes a rich cocoa flavor. The temperature of the roasted can be adjustable as your requirement.


    TECHNICAL DATA OF OUR COCOA BEAN ROASTERS:


    MODEL CAPACITY POWER HEAT TYPE DIMENSIONS
    DE-R100 100-200 KG/ HR 1.1KW ELECTRIC 2900*1200*1700MM
    DE-R200 150-300 KG/HR 2.2KW ELECTRIC 2900*2200*1700MM

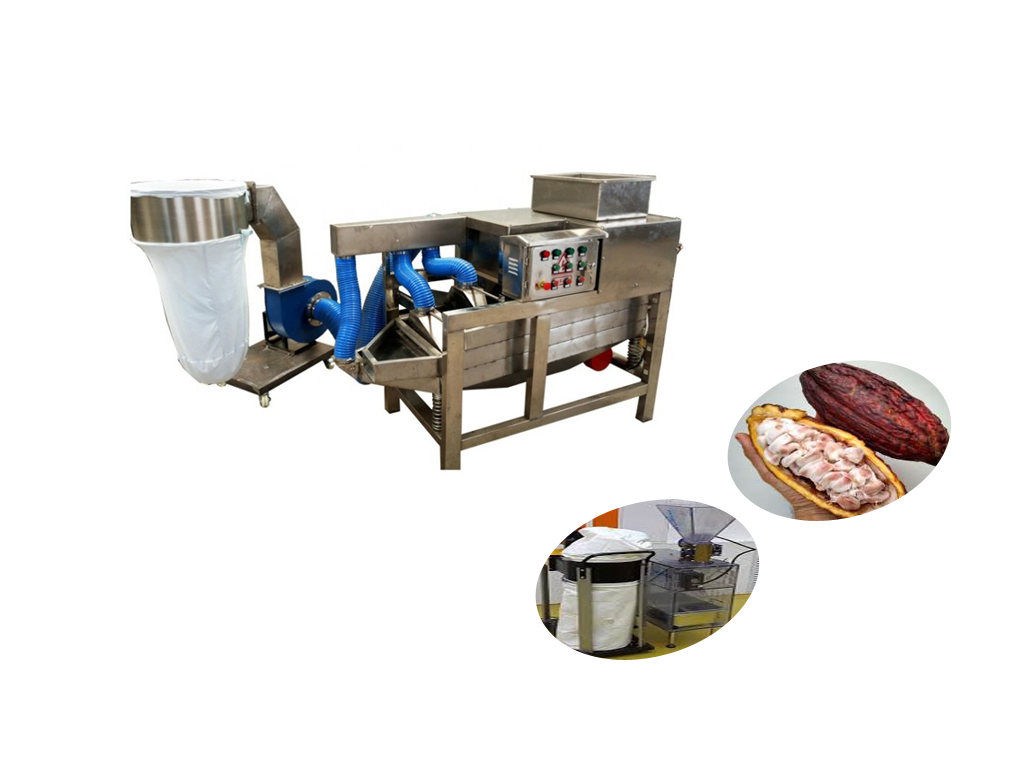

DE-COCOA BEAN CRACK AND WINNOWER:

    This machine is special equipment for processing cocoa and peanut. It has a high degree of automation, peeling rate is high, low noise and no pollution etc. this machine has the vaccume cleaner can suck cocoa bean skin and peanut red coat , is the ideal choice for the food processing industry.

    HOW TO WORK ABOUT THE MACHINE:

    There are two rollers inside of machine, it is used to extrude (crack) the cocoa bean broken. Then the shell leave the cocoa bean, cocoa bean become nibs. The gravity of cocoa nibs is difference with cocoas shell (broken cocoa shell) cocoa nibs is weight, cocoa shell is light. The fan will produce the wind, and the wind can take shell out, and into plastic bag the cocoa nibs is weight and will be down, come out by outlet of machine. The two knobs are used to adjust the distance of two rollers. If distance is long, the final nibs is bigger, if distance is short, the final nibs is smaller. The air is used to take the cocoa shell out.

    • ♦ Cocoa bean winnower is used to remove the shell of cocoa bean.
    • ♦ Clean rate: 99%-100%

    TECHNICAL DATA OF OUR COCOA BEAN WINNOWER:


    MODEL CAPACITY POWER DIMENSIONS
    DE-CW100 DE-CW100 0.35KW+0.35KW 1050X750X1250MM
    DE-CW200 100-200KG/HR 100-200KG/HR 1300X750X1250MM
    DE-CW300 200-300KG/HR 1.5KW+0.75KW 1600X850X1350MM
    DE-CW400 300-400KG/HR 2.2KW+0.75KW 1800X900X1550MM

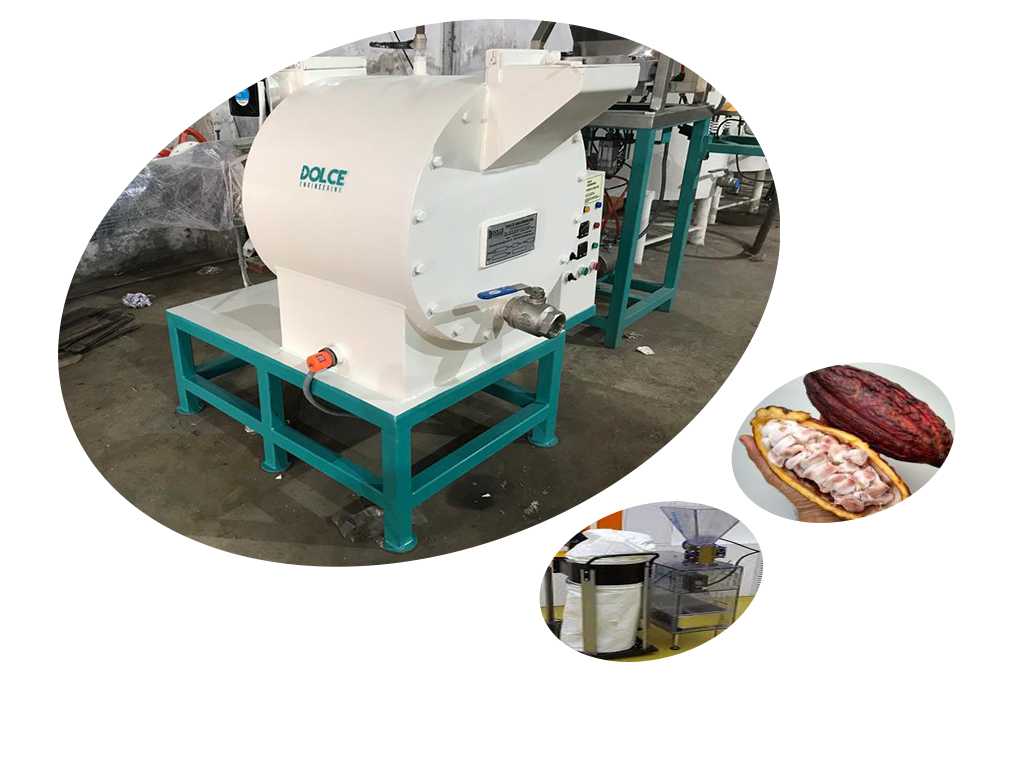

DE-CHOCOLATE REFINER CONCHE:

    A chocolate refiner conch has a hot water jacketed tank that is fitted with lining bars on the inner side. Fitted inside the tank is a heavy duty rotating shaft with grinding bars that run along the inner lining bars. They are manufactured from manganese steel, an alloy containing an average of around 13% manganese.
    The Chocolate Refiner Conches that we provide produce fine chocolate with smooth and refined particles. It is the main equipment in chocolate production line. These machines are widely used to produce fine quality dark, milk and white chocolates, truffles, pralines, compounds etc.

    TECHNICAL DATA OF OUR CHOCOLATE REFINER CONCHES:


    Model: DE-RC20 DE-RC40 DE-RC100 DE-RC500 DE-RC1000
    Maximum
    capacity(L):
    20 40 100 500 1000
    Grinding
    Fineness(micron):
    20~25 20~25 20~25 20~25 20~25
    Main Axle
    Speed(rpm):
    93 70 48 33 33
    Grinding
    time(h) :
    8 TO 10 8 TO 10 10 TO 12 12 TO 14 12 TO 14
    Main motor
    power(kw) :
    1.5 2.2 3.7 15 22
    Electrical
    heating(KW):
    1.5 3 3 6 6
    Power of spot
    operation
    motor(kw) :
    manual manual manual 1.5 1.5
    Weight(kg): 295 360 1050 3050 4850
    Outside
    dimensions(mm):
    600X400X1000 700X500X1000 1000X6501150 2465X1146X1312 2627X1280X1520

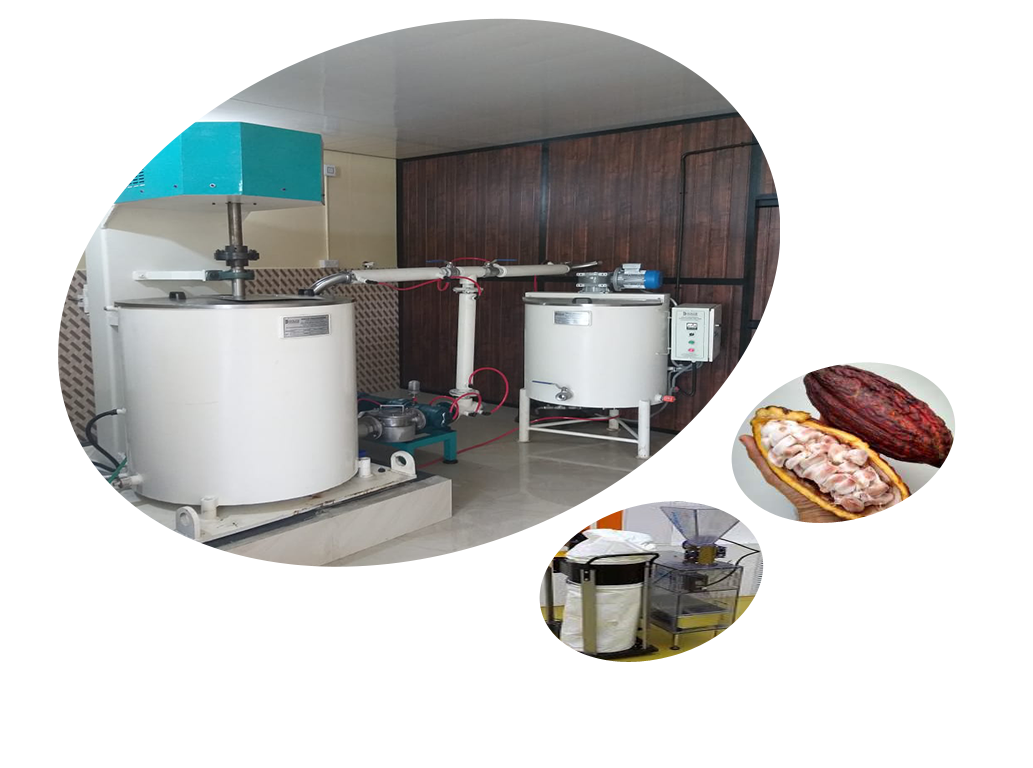

DE-BATCH BALLMILL:

    The Chocolate BATCH BALLMILL that we provide produces fine chocolate with smooth and refined particles. It is the main equipment in chocolate production line. These machines are widely used to produce fine quality dark, milk and white chocolates, truffles, pralines, compounds etc.
    DOLCE ENGINEERING chocolate ball milling machine is used for ball grinding and milling chocolate pastes. Through collision and friction between the steel ball and the chocolate pastes inside the machine cylinder, the chocolate pastes will continuously improve its fineness till it reaches the required rate. This machine has advantages of high production output, low energy cost, even fineness and etc…this machine should be used along with chocolate refiner and conche, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production. It has automatic temperature control.

    TECHNICAL DATA OF OUR CHOCOLATE BATCH BALLMILLS:


    Model: DE-BBM250 DE-BBM500 DE-BBM1000
    Volume(L): 250 500 1000
    MOC: MS/SS,SS MS/SS,SS MS/SS,SS
    Motor Power (KW) : 11.25 18.75 22
    Main Axle
    Rotating Speed (rpm) :
    100 100 100
    Electrical
    heating power(kw) :
    3 4 6
    N.W.(kg): 600 1200 1800
    Overall Size(mm) φ800*2000 φ1000*2000 φ1200*2500

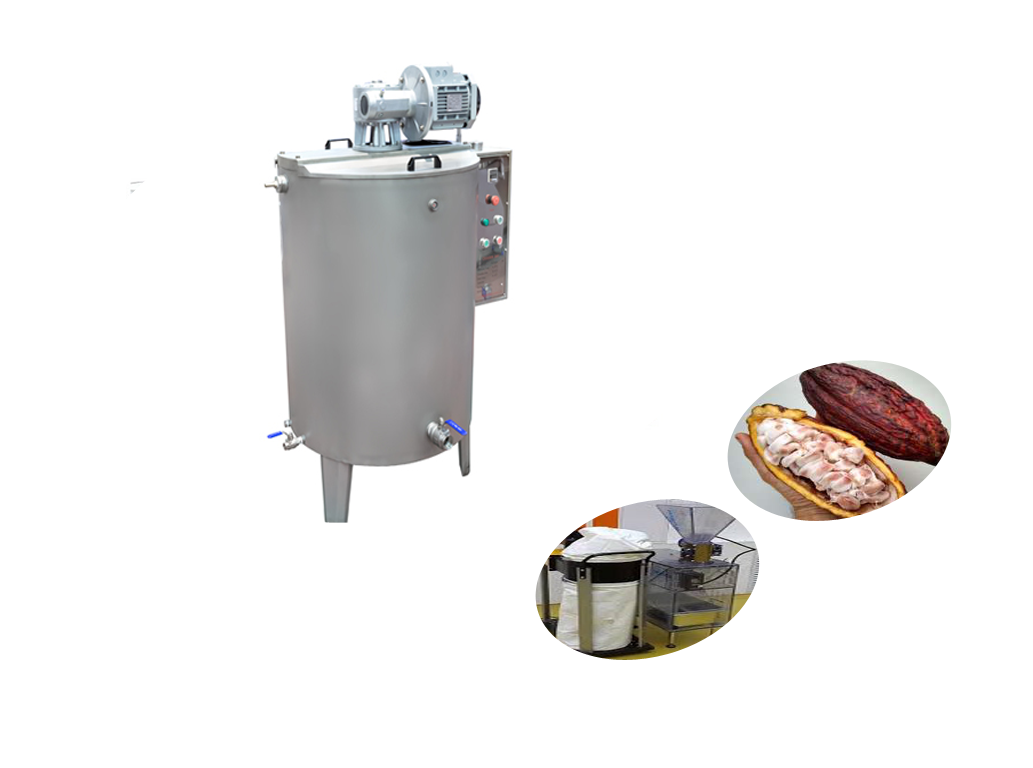

DE-CHOCOLATE HOLDING TANK:

    DOLCE ENGINEERING storage tanks specifically designed to melt blocks of chocolate, fat, cocoa mass and cocoa Butter. Melting tanks are standing, twin shell and isolated cylindrical vessel with a agitator, in built heating and water circulation system, ensures keeping a temperature chocolate mass. Electronic controller maintains a heating according to adjusted value which is set by operator. Electric geared motor drives agitator. The tank is closed by ss lids. Tanks are fitted with ss ball or gate valve.

    TECHNICAL DATA OF OUR CHOCOLATE MELTING TANKS:


    Model: DE-MT50 DE-MT100 DE-MT250 DE-MT500 DE-MT1000 DE-MT2000 DE-MT3000
    Volume(L) 50 100 250 500 1000 2000 3000
    MOC: MS/SS,SS MS/SS,SS MS/SS,SS MS/SS,SS MS/SS,SS MS/SS,SS MS/SS,SS
    Motor Power(KW): 0.19 0.37 0.75 1.1 1.5 2.2 3.75
    Main Axle
    Rotating Speed(rpm):
    22.5 22.5 22.5 22.5 22.5 22.5 22.5
    Electrical
    heating power(KW):
    1.5 3 3 4.5 6 6 9
    Net Weight (kg): 100 150 205 350 550 1500 2500
    Overall Size(mm): φ600*1050 φ700*1250 φ850*1250 φ1035*1480 φ1250*1700 φ1400*2500 φ1400*2500

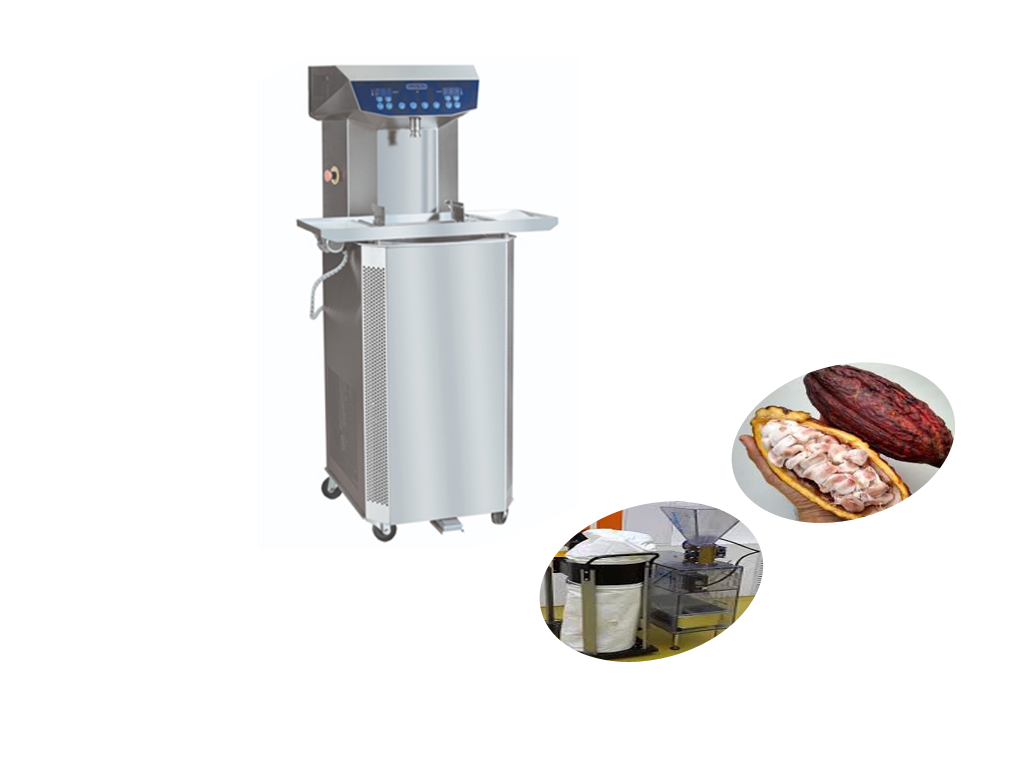

DE-AUTOMATIC TEMPERING MACHINE:

    A chocolate tempering machine is a counter top electronic mixing and heating pan or appliance that is designed to take all the guess work and manual labor out of tempering chocolate. Raw chocolate that is melted to make various types of candy must be tempered to be crisp and smooth.

    TECHNICAL DATA OF OUR AUTOMATIC TEMPERING MACHINES:


    MODEL CAPACITY(KG/H) TOTAL POWER(KW) N.W.(KG) OVERALL SIZE(MM)
    DE-ATM30 60 5 250 980*840*1855
    DE-ATM60 100 8.3 380 980*840*2060
    DE-ATM80 200 10 600 1175*965*2055

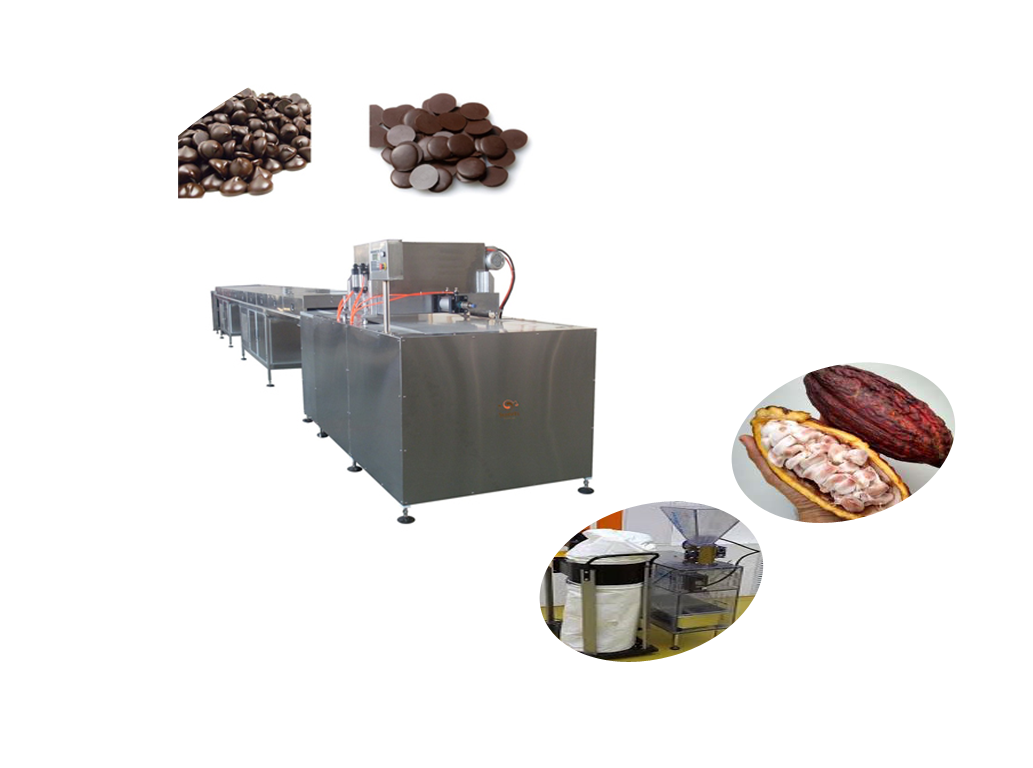

DE-AUTOMATIC CHOCO DROPS/CHIPS LINE:

    Chocolate Chip Making machine allows for the deposit of chocolate and chocolate compound drops and chips in a variety of shapes and weights, ranging from 0.1 to 5grams. These types of products are ideal for industrial supply and subsequent melting, for decorating and for use in other products. The Chip Depositor Line includes a double-jacketed depositor head equipped with temperature control and a fixedspeed agitator. The movements of the head are coordinated with the belt used to collect the deposited products. The line also includes a belt-lifting system for deposit enabling diverse drop shapes. The drops are forwarded into cooling tunnel immediately after deposit.

    TECHNICAL DATA OF OUR AUTOMATIC CHOCO CHIPS LINE:


    MODEL: DE-CHL600 DE-CHL800 DE-CHL1000 DE-CHL1200
    BELT WIDTH(MM): 600 800 1000 1200
    CAPACITY(KG/HOUR): 50~100 80~150 100~200 200~500
    MINIMUM WEIGHT(G): 0.1 0.1 0.1 0.1
    LENGTH OF
    COOLING TUNNEL(M) :
    10 16 16 20
    TOTAL POWER(KW): 8 10.52 12 18
    DIMENSION(MM): 12000X950X1500 16000*1150*1750 18000X1300X1500 22000X1450X1500

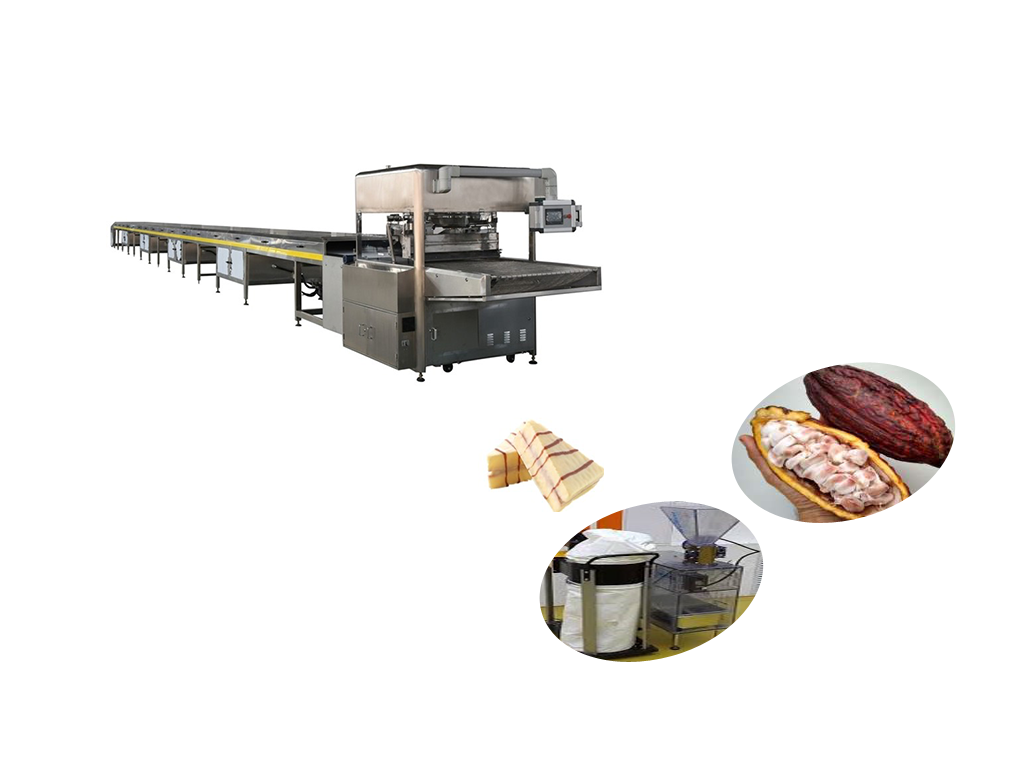

DE-AUTOMATIC CHOCOLATE ENROBING LINE:

    The purpose of an enrober is to apply chocolate to all surfaces of the centre and produce a product that is attractive, has a glossy surface, is free of voids or holes in the coating, is free of tails or other defects, has a controlled uniform thickness and is decorated so it is eye-catching and distinctive.

    TECHNICAL DATA OF OUR AUTOMATIC CHOCOLATE ENROBING LINE:


    Model: DE-EM250 DE-EM400 DE-EM600 DE-EM900 DE-EM1200
    Wiremesh &
    Belt Width(Mm):
    250 400 600 900 1200
    Wiremesh &
    Belt Speed(M/min):
    3.5-6 1~6 1~6 1~6 1~6
    Refrigeration Unit (Set): 1 2 3 4 5
    Cooling Tunnel
    Length(M):
    5 10 14 18 22
    Cooling Tunnel Temperature(°c): 2~15 2~10 2~10 2~10 2~10
    Total Power(Kw): 10.94 16 16.5 22.87 22.87
    Weight(Kg): 7800 1800 2300 3200 4050
    Outside Dimensions(Mm): 8400×940× 1780 13160×700× 1500 17500×950× 1800 21500×1200× 1800 25500×1450× 1800

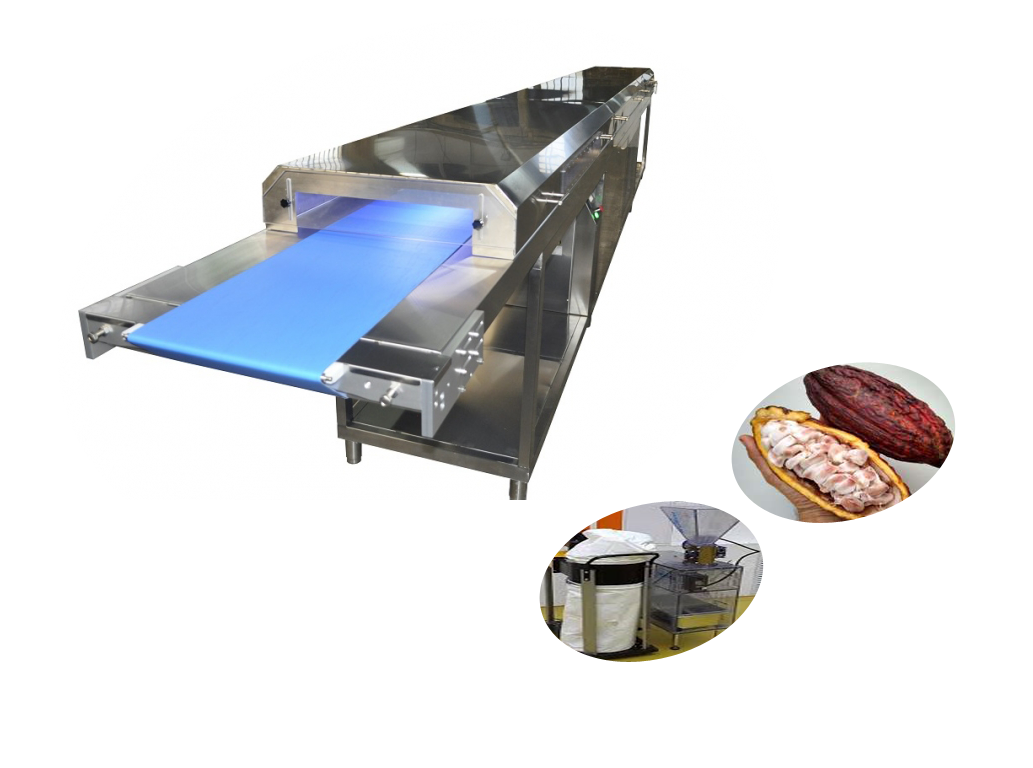

DE-CHOCOLATE COOLING TUNNEL:

    Cooling tunnels are ideal for both artisan industrial chocolate makers. The warm product is delivered to the tunnel by an adjustable conveyor belt, where it is cooled by low-temperature forced air. The refrigeration system and the belt's conveyor are controlled through a digital panel.

    TECHNICAL DATA OF OUR CHOCOLATE COOLING TUNNEL:


    Model: DE-CT250 DE-CT250 DE-CT600 DE-CT900 DE-CT1200
    Pu Conveyor Or
    Moduler Belt Width(Mm):
    250 400 600 900 1200
    Pu Conveyor Or
    Moduler Belt Speed(M/min):
    3.5-6 1~6 1~6 1~6 1~6
    Refrigeration Unit(Set): 1 2 3 4 5
    Cooling Tunnel Length(M): 5 10 14 18 22
    Cooling Tunnel Temperature(°c): 2~15 2~10 2~10 2~10 2~10
    Total Power(Kw): 10.94 16 16.5 22.87 28.5
    Weight(Kg): 7800 1800 2300 3200 4050
    Outside Dimensions(Mm): 8400×940× 1780 13160×700× 1500 17500×950× 1800 21500×1200× 1800 25500×1450 × 1800

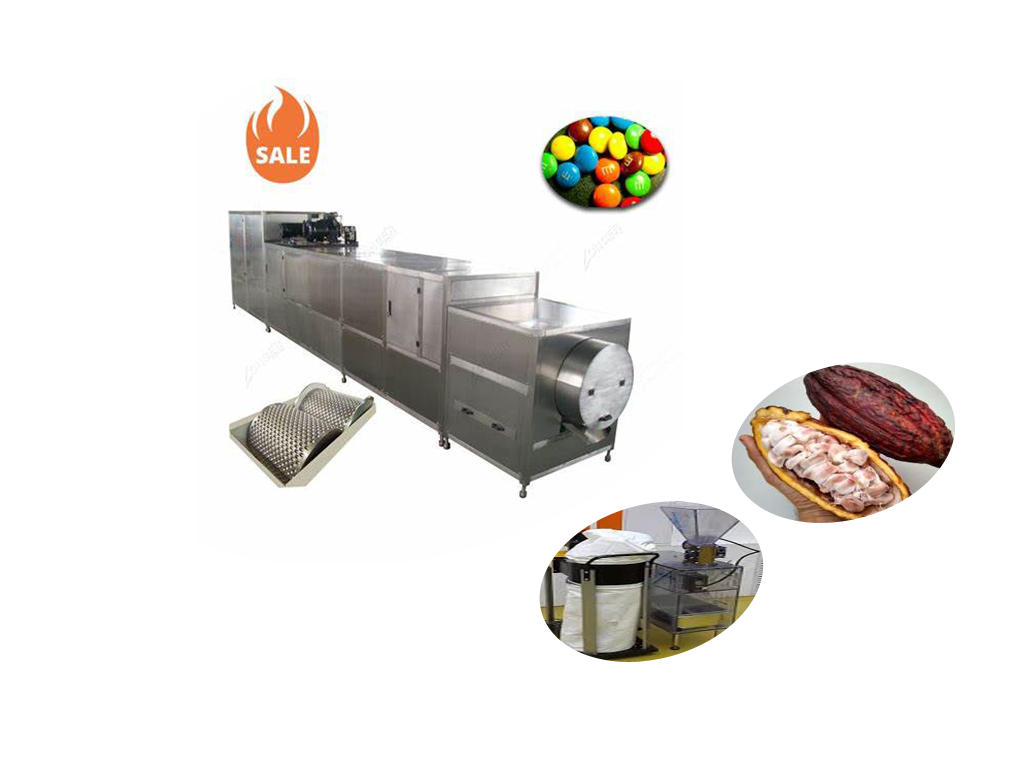

DE-CHOCOLATE LENTIL FORMING LINE:

    This plant is used to make the chocolate centers that are most often subsequently coated with sugar and colorants. These centers can take on several forms, such as lentils, balls, coffee beans or almonds, buttons, olive shape, cashew shape, triangle shape, etc. The machine can moreover be adapted to produce specific centers to meet special client needs. Restricted only by the logical limitations of the centre itself. Line components designed to optimize efficiency, flexibility and hygiene.

    TECHNICAL DATA OF OUR CHOCOLATE LENTIL FORMING MACHINE:


    Model: DE-BFM300 DE-BFM400 DE-BFM600
    ROLLER WIDTH(MM): 300 400 600
    PRODUCTION CAPACITY (KG/H): 50-100 100-150 150-250
    ROLLER SPEED(R/MIN): 0.3-1.5 0.3-1.5 0.3-1.5
    SURFACE TEMP.
    OF COOLING ROLLER(℃):
    ABOUT -20 ABOUT -20 ABOUT -20
    COOLING TUNNEL TEMP.(℃): 0-5 0-5 0-5
    COOLING TIME (MIN): 18-30 18-30 18-30
    COOLING BOX
    REFRIGERATION OUTPUT(W/H):
    8260 8260 12390
    EVAPORATION TEMP. (℃): -35 -35 -35
    Condensation Temp. (℃): 30 30 30
    Total Power(KW): 25 25 30
    Overall Size(mm): 8620*1040*2100 8620*1040*2100 8620*1480*2100

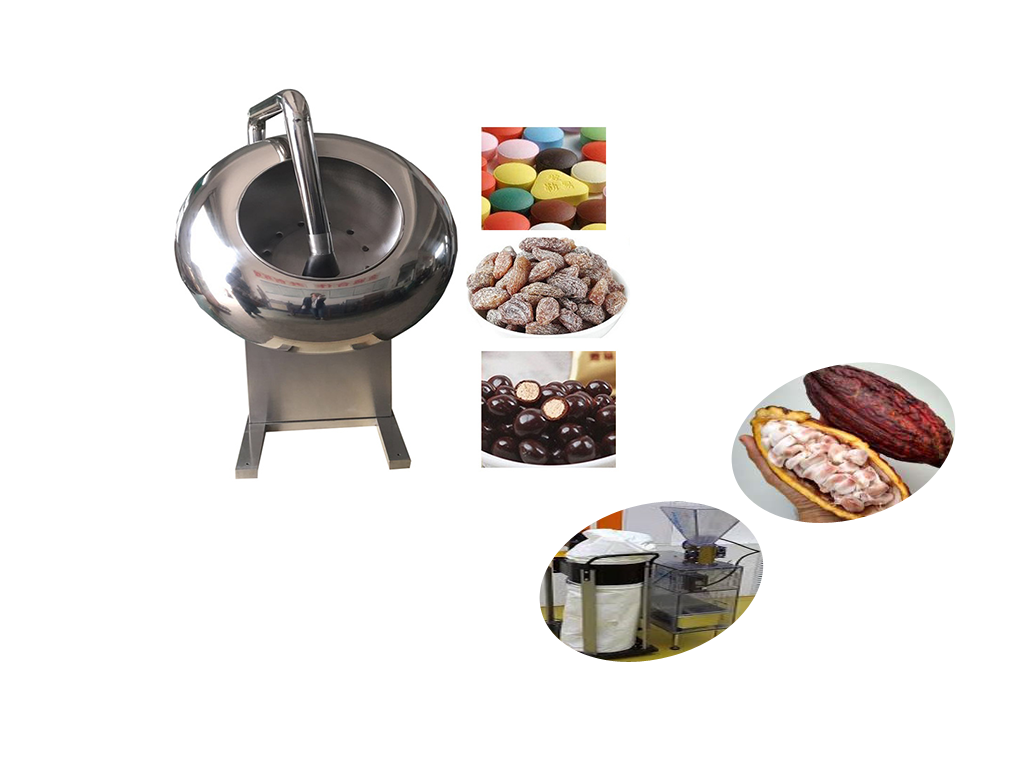

DE-COATING PAN:

    A well-developed and precisely executed chocolate panning technique can provide one of the fastest, most efficient ways to give a chocolate coating to a product. The art of chocolate panning involves the creation of a layer of chocolate surrounding the center, then dusted or polished to a high gloss.

    TECHNICAL DATA OF OUR CHOCOLATE COATING PAN:


    MODEL: DE-CP600 DE-CP800 DE-CP1000 DE-CP1000
    POLISHING POT DIAMETER(MM): 600 800 1000 1250
    POT INCLINED ANGLE: 15°45° 15°45° 15°45° 15°45°
    ROTATING SPEED(RPM): 32 28 28 28
    MAIN MOTOR POWER(KW): 0.75 1.1 1.5 2.2
    AIR BLOWER POWER(KW): 0.25 0.25 0.25 0.37
    HEATING POWER(KW): 0.5*2 2×1 2×1 2×1
    CAPACITY(KGS/TIME): 15 30~50 50~70 90~150
    WEIGHT(KG): 120 240 250 400
    OUTSIDE DIMENSIONS(MM): 700X700X1100 925×900×1500 1100×1100×1600 1340X1250X1680

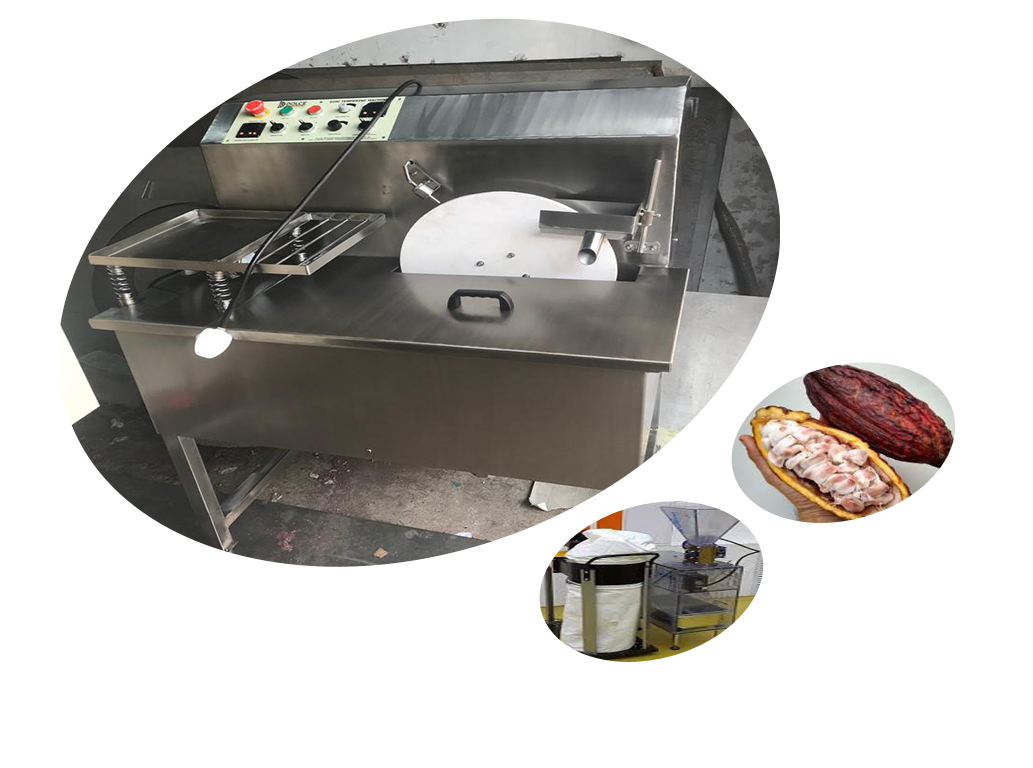

DE-CHOCOLATE DISC TEMPERING MACHINE (OR) MANUAL MOLDING MACHINE:

    DOLCE ENGINEERING Disc tempering machine are specifically designed to melt blocks of chocolate, cocoa mass and cocoa Butter. In built heating system, Electronic controller maintains a heating according to adjusted value which is set by operator. Electric geared motor drives the disc. These tempering machines minimize the temperature of product to the ambient temperature while Disc is rotating.
    DE-DTM’s, it can produce many kinds of chocolate, like plane chocolate, ball chocolate, hollow chocolate, with filling, and etc… it’s easy to operate. The mould vibrating system is very useful to get rid of the air, which is in the chocolate before cooling, make chocolates appearance taste better.

    TECHNICAL DATA OF OUR DISC TEMPERING MACHINES:


    MODEL: DE-DTM08 DE-DTM15 DE-DTM30 DE-DTM60
    MOC: SS SS SS SS
    CAPACITY: 8L 15L 30L 60L
    MAIN MOTOR POWER (KW): 0.18 0.18 0.35 0.35
    ELECTRICAL HEATING (KW): 0.5 0.5 1 2
    MAIN AXEL RPM: 36 36 UP TO 50 UP TO 50
    POWER: SINGLE/THREE PHASE SINGLE/THREE PHASE SINGLE/THREE PHASE SINGLE/THREE PHASE
    OVERALL DIMENSIONS: 500*450*500 500*500*500 1000*800*1300 1100*900*1300

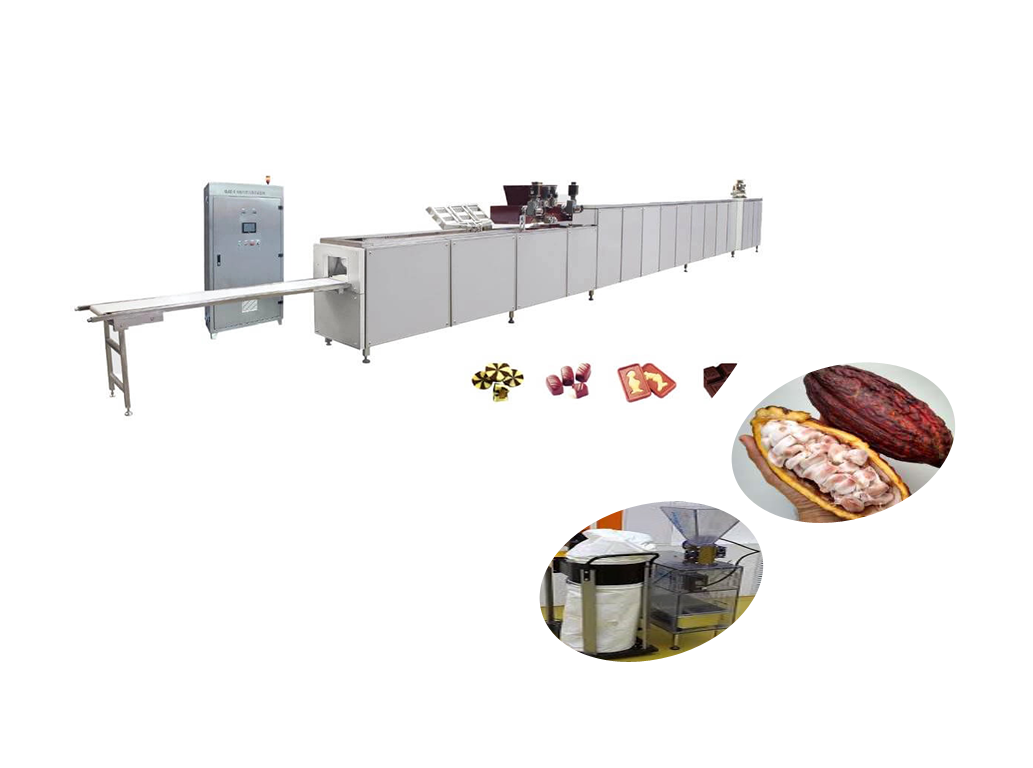

DE- SEMI AUTOMATIC and FULLY AUTOMATIC CHOCOLATE MOULDING MACHINES:

    DOLCE ENGINEERING Disc tempering machine are specifically designed to melt blocks of chocolate, cocoa mass and cocoa Butter. In built heating system, Electronic controller maintains a heating according to adjusted value which is set by operator. Electric geared motor drives the disc. These tempering machines minimize the temperature of product to the ambient temperature while Disc is rotating.
    DE-DTM’s, it can produce many kinds of chocolate, like plane chocolate, ball chocolate, hollow chocolate, with filling, and etc… it’s easy to operate. The mould vibrating system is very useful to get rid of the air, which is in the chocolate before cooling, make chocolates appearance taste better.

    TECHNICAL DATA OF OUR DISC TEMPERING MACHINES:


    MODEL: DE-FAM220 DE-FAM380 DE-FAM420
    Capacity(ton/shift): 0.3~0.5 0 .5~1.2 1.0~2.5
    Total power(kw): 9 22 25
    Refrigeration unit(HP): None 20 20
    Mould size(mm): 275x175x20 280x200x30 470x200x30 280x200x30 470x200x30
    moulds quantity(pcs): 270 380 380
    Weight(kg): 1000 5800 6200
    Outside dimension(mm): 3600x725x1560 17060x1005x1870 18600x1200x2400
